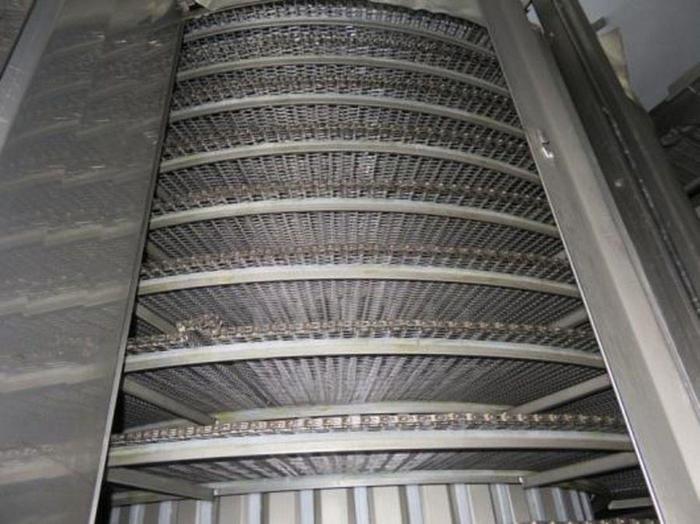

EUROTEK CPS 20(1.7) 19-130 SPIRAL FREEZER WITH BITZER PLANT

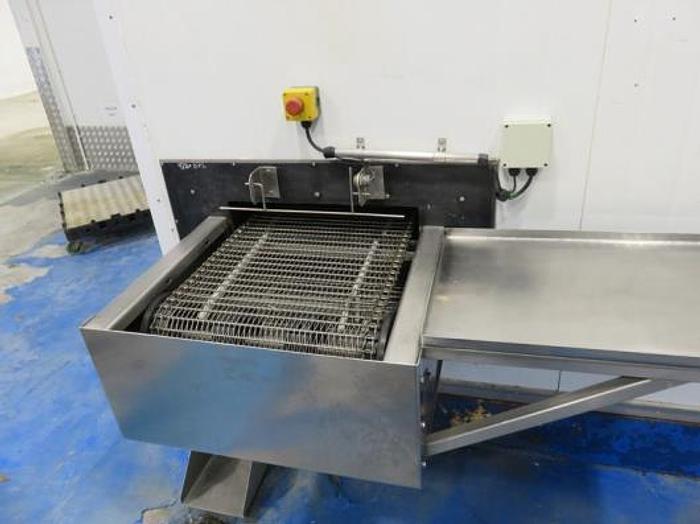

1 x Eurotek spiral freezer with SPL Refrigeration Plant, 2 x Bitzer screw compressors. Will be fitted with new box / panels. Comes with de-elevator conveyor from outfeed.

Model - CPS 20(1.7) 19-130.

North-South configuration.

Belt width – 500mm.

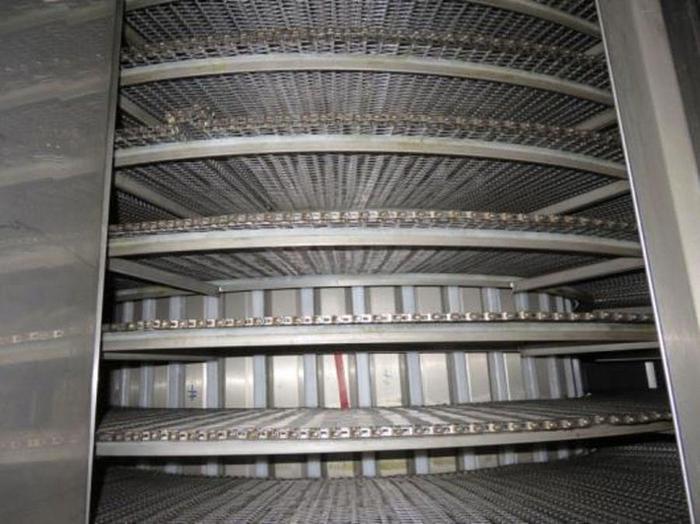

Number of tiers - 20.

Tier pitch - 130mm.

Maximum product height - 60mm.

Infeed height - 750mm.

Outfeed height - 3280mm.

External dimensions of the insulated enclosure - 5875mm L x 3300mm W x 3750mm H.

Throughput - Up to 1000kg/h depending on product.

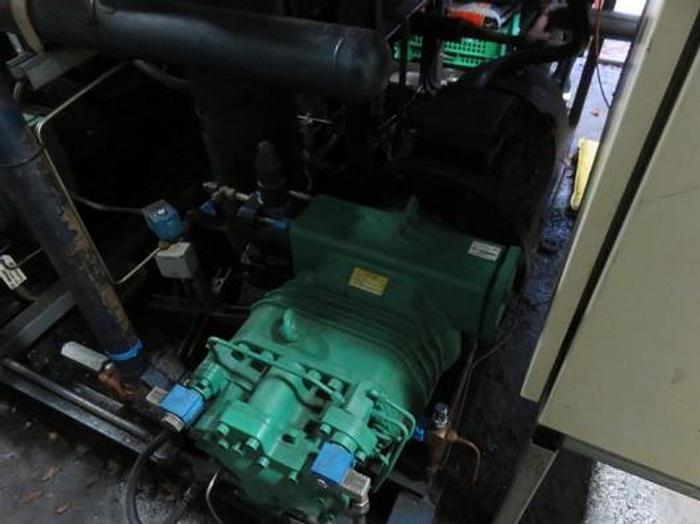

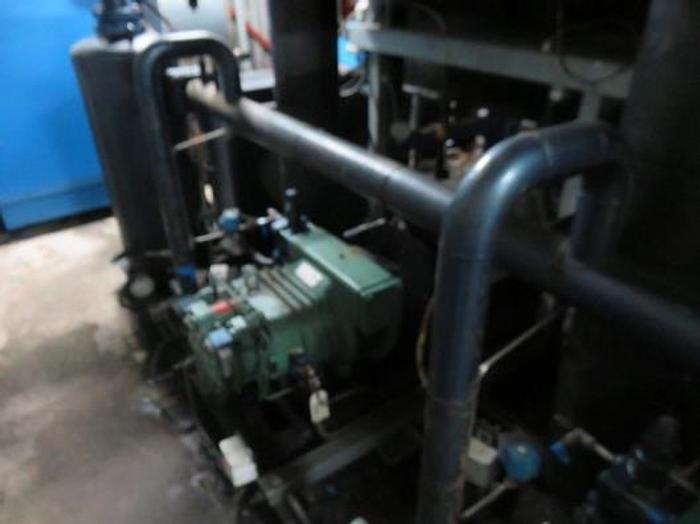

Compressors - 2 x Bitzer screw compressors. Model - 7451. Duty - 74kW.

Refrigerant - Freon R404A.

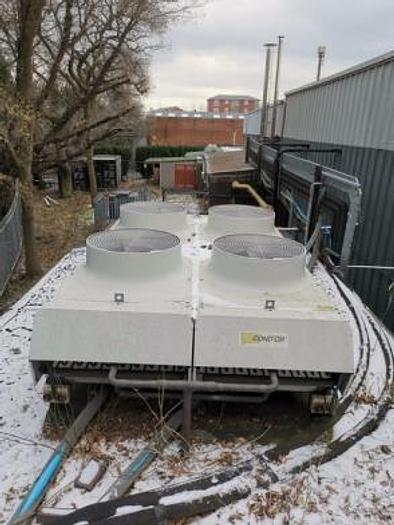

Condenser - Helpman 4 x fan.

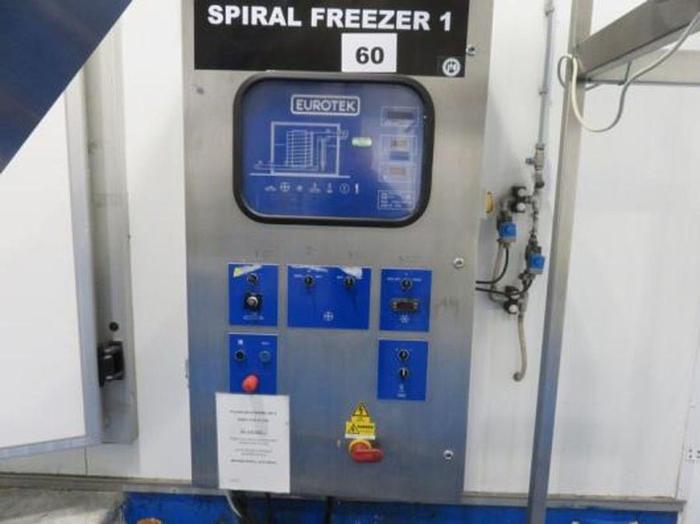

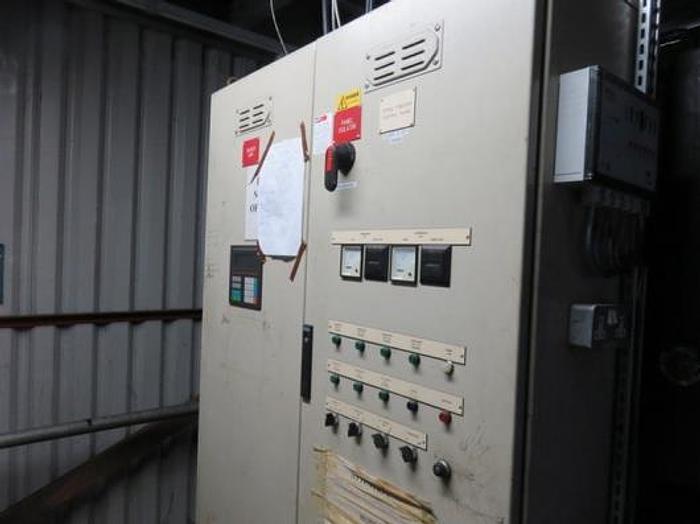

Control system - Mitsubishi PLC Model A1-S.

Previous use - freezing of ready meals, infeed at 80degC and outfeed at -18degC.

Has been removed from site professionally and ready for transport.

To be built on site.

*Please enquire for drawings*
