NORFO AUTOMATIC BLOCK SAWING LINE

NORFO AUTOMATIC BLOCK SAWING LINE

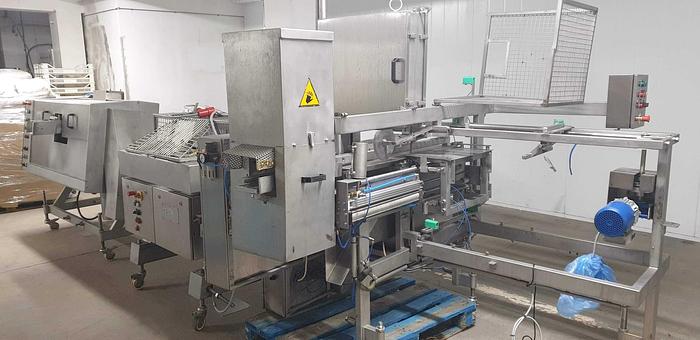

The system consists of the following units:

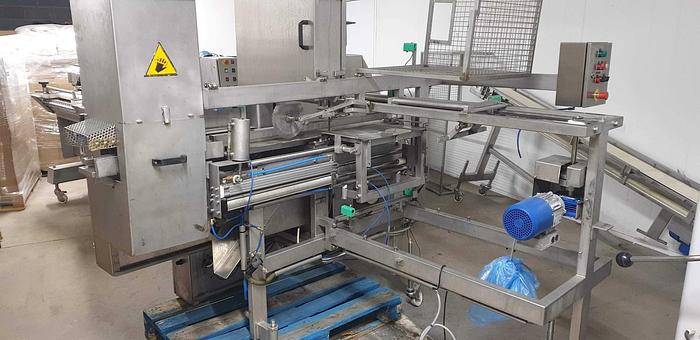

1. Automatic Saw Band

Developed for cutting frozen blocks. The Norfo line is complete with a feeding conveyor,

in which a standard 7.54kg block is placed and then automatically fed to the cutting

table and vertical belt knife. The blocks are held firmly in position by adjustable flaps.

Blocks are cut with high precision. Automatic functions are controlled by the PLC CPU.

Automatic Band Saw:

Dimensions (LxWxH): 2670 х 2480 х 1925 mm

Height of loading table: 1075-1210 mm

Capacity: up to 20 blocks/min

Dimensions of block: 490 х 490 х 70 mm

Voltage: 3х230/400 V, 50 Hz 3х32 А, 5 кВт

Air consumption: 50 l/min with 16 blocks/min, pressure: 6-12 bar

Weight: 700 kg

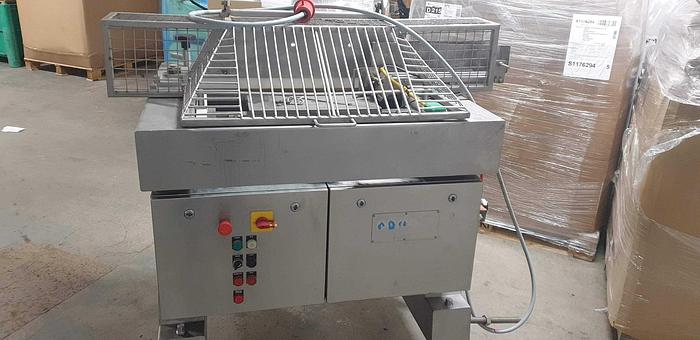

2. Multi Band Saw

The saw has up to 6 thin blades and can be adjusted for cutting logs into 2-7 slabs. The

blade tensioning is individual and the saw automatically stops at blade fracture.

The saw is fed with logs from the NORFO Automatic Band Saw or feeder.

The NORFO Multi Band Saw has a self-adjusted blade guide, to make a quick safe

change between different productions possible.

Multi Band Saw:

Dimensions (LxWxH): 1150 х 2050 х 1325-1495 mm

Height of loading table: 1055-1225 mm

Capacity: up to 40 slabs/мmin

Voltage: 3х220/380 V, 50 Hz, 3х35 А,

Power: 11 kW

Air consumption: 10 l/min

Pressure: up to 12 bar

Weight: 360 kg

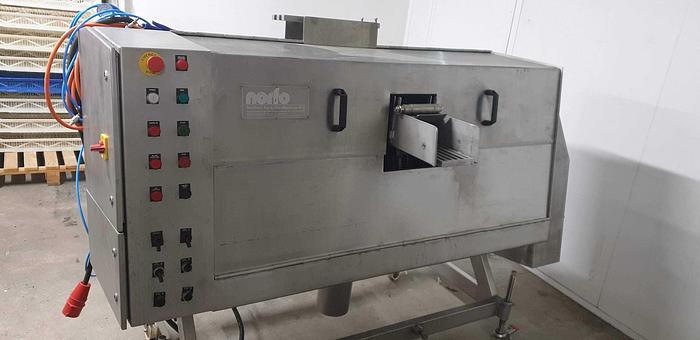

3. Portion Saw ABS

Developed to cut slabs into portions with maximum high speed.

Dimensions (LxWxH): 1070 х 1400 х 1355-2200 mm

Height of loading table: 1005-1035 mm

Capacity: up to 10 - 60 slabs/min

Voltage: 3х380 V, 50 Hz, 3х35 А

Power: 7,5 kW

Air consumption: 8 bar, 600 l/min

Weight: 300 kg
